[Android] Socket을 활용한 ROS 통신

Socket을 활용한 ROS 통신 아래와 같은 방식으로 진행한다.

1) Android App에서 Socket 통신을 활용하여 ROS2 publisher (talker)에게 data를 보낸다.

2) publisher (talker)가 subscriber (listener)에게 ROS2를 통해 data를 보낸다.



Clonning the repository

cd $HOME
git clone https://github.com/mirellameelo/ROS_2_ANDROID.git



Building ROS 2 package

Open the terminal and source the ROS:

source /opt/ros/foxy/setup.bash

cd $HOME/ROS_2_ANDROID
colcon build --packages-select cpp_pubsub

// foxy : 설치된 ROS2 버전 입력



ROS 2 and Android communication

Step 1: runnning the Android application in your phone

1. Open your Android Studio
2. Open the project "my_places"
3. Go to app->java->com.example.myplaces->MainActivity and CHANGE the IP to your computer IP (you can verify it when running ifconfig in the terminal)
4. Run the application in your phone

// my_places App을 참고하여 용도에 맞게 Android App을 만들어 사용하면 된다.
* AndroidManifest.xml의 permission 주는 것을 잊지 말자!

<uses-permission android:name="android.permission.INTERNET"/>

Step 2: runnning the talker and listener

Open two terminals and source the cpp_pubsub setup file in both.

source $HOME/ROS_2_ANDROID/install/setup.bash

Terminal_1: Run the talker

#run the talker
ros2 run cpp_pubsub talker



The publisher now is waiting for data comming via Socket. Terminal_2: Run the listener

# run the listener
ros2 run cpp_pubsub listener



---

[ TEST ]

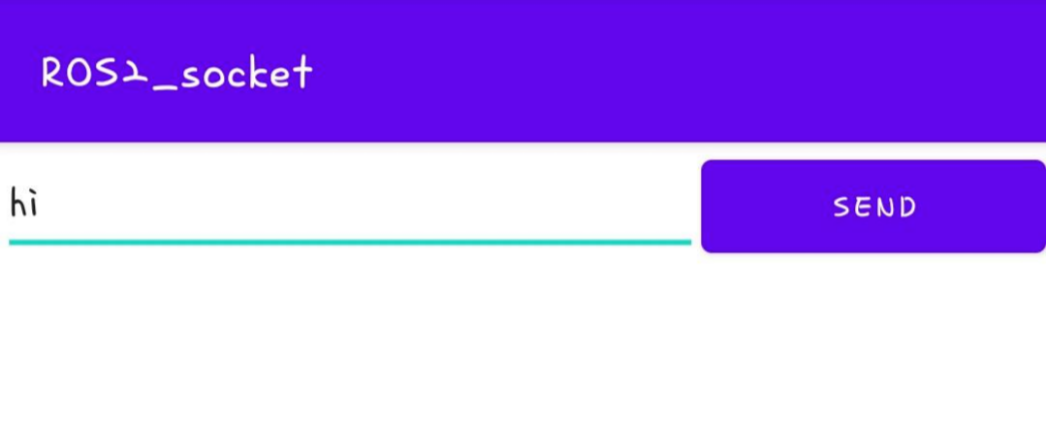

test용으로 만들어본 App 실행 화면



ros2 run cpp_pubsub talker 실행 화면

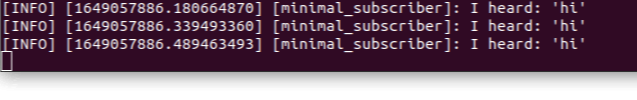

ros2 run cpp_pubsub listener 실행 화면





---
